Description

Lightbox exhibition wall plastic isyLED 12.2

Lightbox exhibition walls are hot. And for a reason. Thanks to the internal LED lighting, they bring your brand, product or company to life and attract the attention of visitors and potential customers.
Our isyLED 12.2 lightbox exhibition wall consists of lightweight plastic profiles in the color white. The profiles are 120mm wide. This is in contrast to our aluminum exhibition walls such as the Exhibition wall Lightbox aluminum 8.1 (80mm profiles) and the Exhibition wall Lightbox aluminum 6.1 (60mm profiles).
Small but powerful "wide-angle" power LEDs are integrated into these plastic profiles. These LEDs ensure that your print on canvas is beautifully evenly illuminated from the back.

Highlights of isyled 12.2 (features and advantages compared to other exhibition walls)

  • Lightweight plastic profiles (120 mm) in a modern white color
  • Integrated LEDs and integrated cables
  • Plug & play!
  • Modern look
  • Can be used both single-sided and double-sided
  • Perfectly uniform illumination of the PCB by means of "wide-angle" power LEDs
  • The LEDs have a lifespan of approx. 50,000 burning hours
  • It is possible to connect multiple frames/exhibition walls

How do you build the Lightbox exhibition wall plastic isyLED 12.2?

Building up, or actually setting up more, of this exhibition wall is very simple. In the supplied transport packaging, all parts have their own place and the parts are numbered. This makes building this lightbox exhibition wall child's play. You put the profiles together, fold out the feet, attach the horizontal stabilizer bar, plug in the plugs of the LED lighting and the frame is ready.

Now all you have to do is attach the print to the frame. To do this, press the plastic tendon of the fabric into the recesses of the profiles. It is best to start in the corners of the frame and then work towards the middle. When you have attached the print, do the same with the white backing cloth. This cloth provides extra reflection from the LEDs, so that the front print is illuminated even better.

How do we print your isyled 12.2 exhibition wall?

For this lightbox exhibition wall we make your print on a translucent polyester fabric. We finish this fabric with a plastic "string" that is sewn to the edges of the print. Because the fabric is slightly stretchy, it is easy to attach to the lightbox.

The fabric we use ensures maximum even illumination of the print. Because the fabric is printed with a sublimation technique, the ink penetrates deeply into the fibres. This ensures a beautiful and durable end result with clear images and sharp texts. The fabric can be transported and stored rolled or folded, without the risk of "breaking" the ink, which other printing techniques sometimes suffer from.

Environment and fire safety

We print with solvent-free inks because they are less harmful to the environment. Our fabrics also have a B1 fire safety standard, something that is requested by some exhibition locations.

Want to know more about the Lightbox exhibition wall plastic isyLED 12.2?

Call or email us for more information or free advice. Together for success!

Advantages

  • Lightweight plastic profiles (120 mm) in a modern white color
  • Integrated LEDs and integrated cables
  • Plug & play!
  • Modern look
  • Can be used both single-sided and double-sided
  • Perfectly uniform illumination of the PCB by means of "wide-angle" power LEDs
  • The LEDs have a lifespan of approx. 50,000 burning hours
  • It is possible to connect multiple frames/exhibition walls

Included

When purchasing this exhibition wall, you will receive the following parts and elements from us as standard:

  • Plastic isyLED 12.2 frame completely complete, including stabilization feet
  • Integrated LED spots - these are already mounted so plug & play
  • Horizontal stabilizer bar

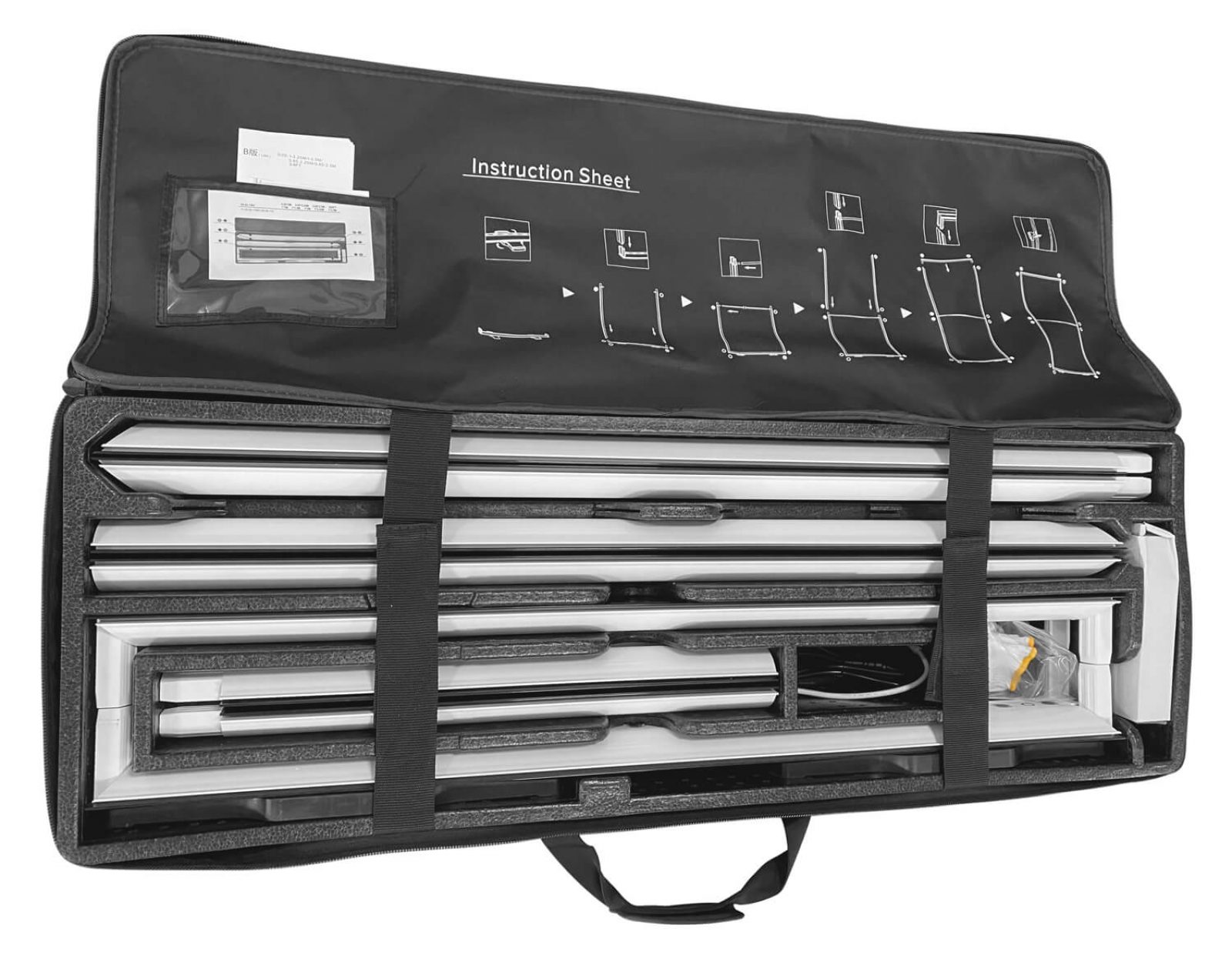

  • Padded transport bag with layout - each part its own place
  • Fully printed, ready-to-use print on fabric for the front
  • White fabric for the back - this provides more reflection so that your print on the front is better lit
  • Free advice on design and communication
  • Free check of your supplied graphic/file before it goes to the print department. We make minor corrections for you. In case of larger deviations we will contact you
  • Two-year full warranty from us

…as well as any options and accessories you have chosen.

Specs

Variant Width Height Depth (excl. feet) Weight
85 cm
85x200 85 cm 200 cm 12 cm 12.1kg
85x225 85 cm 225 cm 12 cm 12.7kg
85x250 85 cm 250 cm 12 cm 13.3kg
100 cm
100x100 100 cm 100 cm 12 cm 9.5 kg
100x150 100 cm 150 cm 12 cm 11.3kg
100x200 100 cm 200 cm 12 cm 12.6kg
100x225 100 cm 225 cm 12 cm 13.3kg
100x250 100 cm 250 cm 12 cm 13.8kg
200 cm
200x200 200 cm 200 cm 12 cm 19.4 kg
200x225 200 cm 225 cm 12 cm 20.2 kg
200x250 200 cm 250 cm 12 cm 20.8kg
300 cm
300x200 300 cm 200 cm 12 cm 26.5 kg
300x225 300 cm 225 cm 12 cm 27.2kg
300x250 300 cm 250 cm 12 cm 27.8kg

Product video

Downloads

Lightbox_isyLED_12.1_1000x2500

Lightbox_isyLED_12.1_1000x2250

Lightbox_isyLED_12.1_1000x2000

Lightbox_isyLED_12.1_1000x1500

Lightbox_isyLED_12.1_1000x1000

Lightbox_isyLED_12.1_850x2500

Lightbox_isyLED_12.1_850x2250

Lightbox_isyLED_12.1_850x2000
